Getting started

How to import your ResMed data

Your AirSense stores its therapy data on a small SD card. Here's how to get it into the app in four steps – it takes about five minutes.

You'll need

ResMed SD card

Your ResMed SD card

It lives in a slot on the side of your machine.

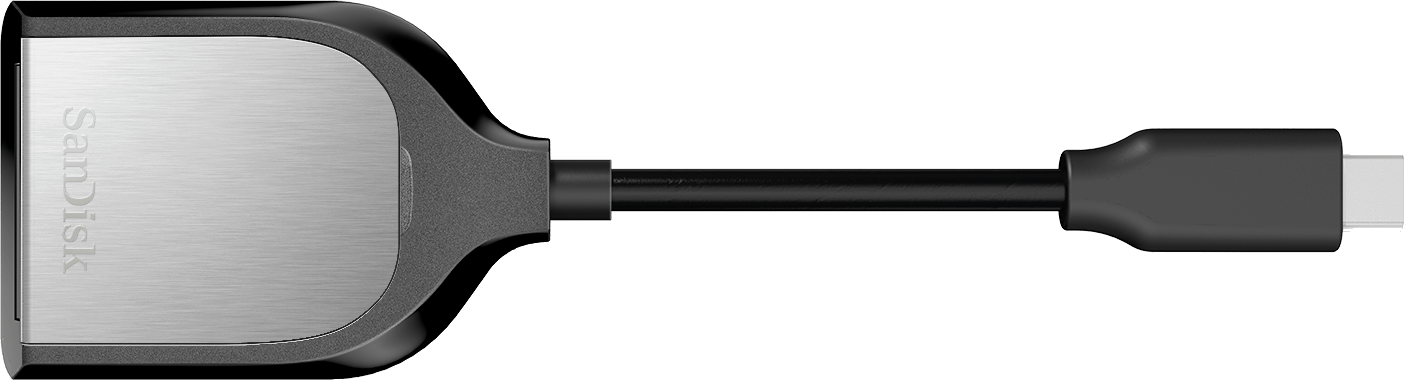

USB-C SD card reader

An SD card reader

USB-C for iPhone 15+, Lightning for 14 and older. The one we recommend.

CPAP Analysis app icon

Your iPhone & the app

CPAP Analysis, free on the App Store.

1

Get the card

Take the SD card out of your machine

Open the flap on the right-hand side of your AirSense 10. Push the SD card gently inwards until it clicks, then let go – it springs out. Slide it the rest of the way out.

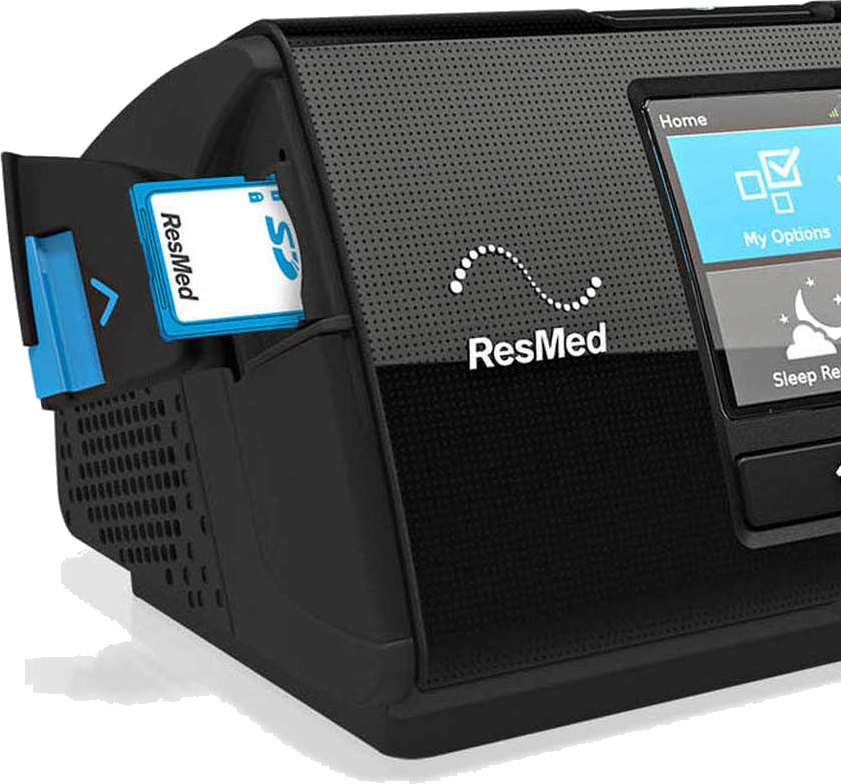

ResMed AirSense 10 with the SD card ejected from the slot on the side
2

Connect it

Plug the card into your iPhone

Slide the ResMed card into your SD card reader with the label facing up, then plug the reader into your iPhone's charging port.

Which reader? iPhone 15 or newer use any USB-C SD card reader. iPhone 14 or older need a Lightning to SD Card reader. See the one we recommend (affiliate link).

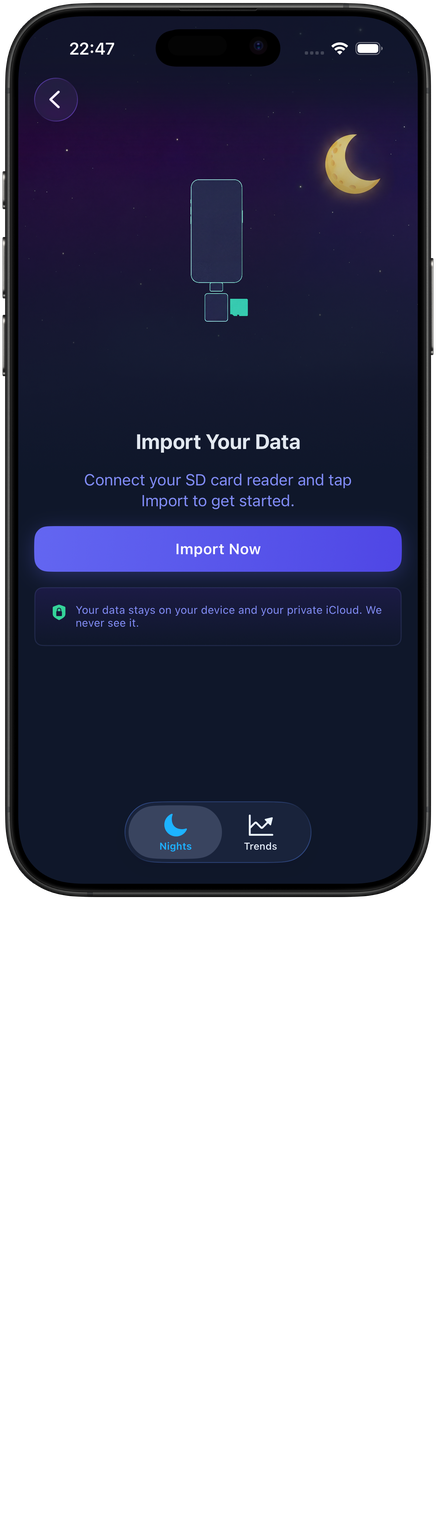

A ResMed SD card slides into a USB-C card reader, which plugs into the bottom of an iPhone
3

Open the app

Start the import in CPAP Analysis

Open CPAP Analysis and tap Import Now to open the file browser.

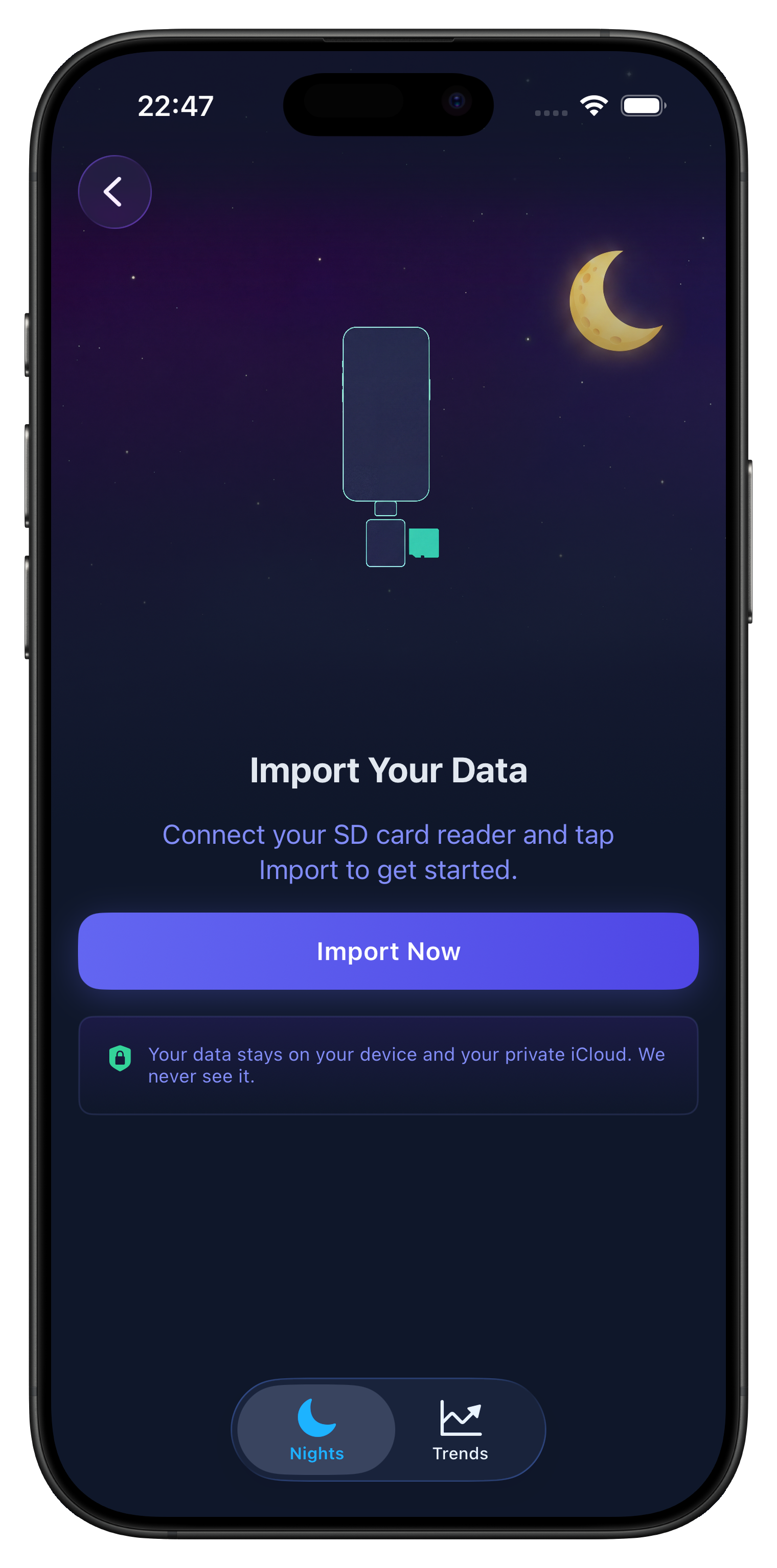

CPAP Analysis Import Your Data screen with the Import Now button
4

Choose the folder

Select the SD card – not a folder inside it

Under Locations, tap NO NAME – that's your SD card. You'll see folders like DATALOG and SETTINGS; just tap Open at the top. Don't open the DATALOG folder itself.

No DATALOG folder showing? The reader probably isn't connected – reseat the card in the reader and try again.

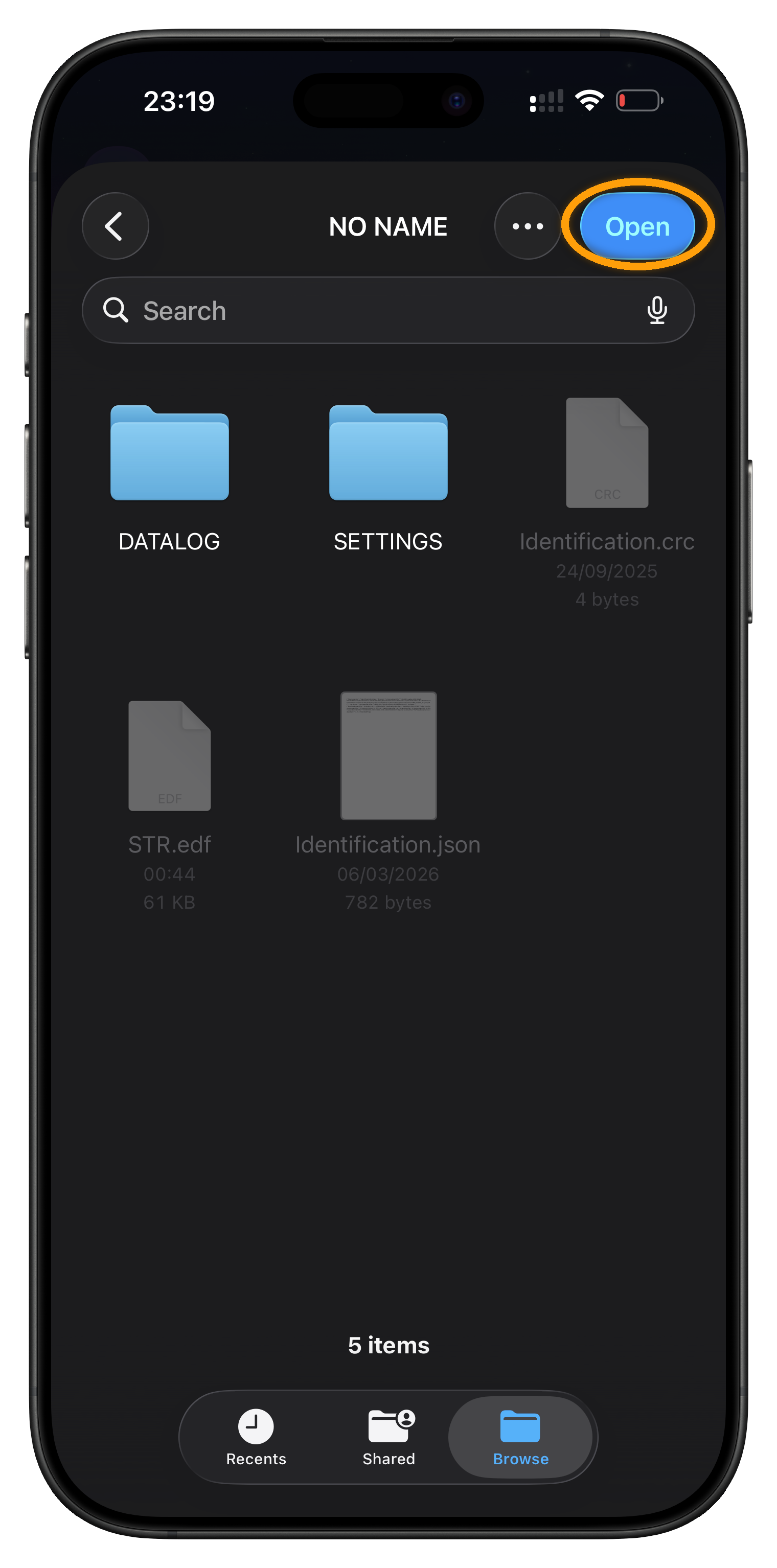

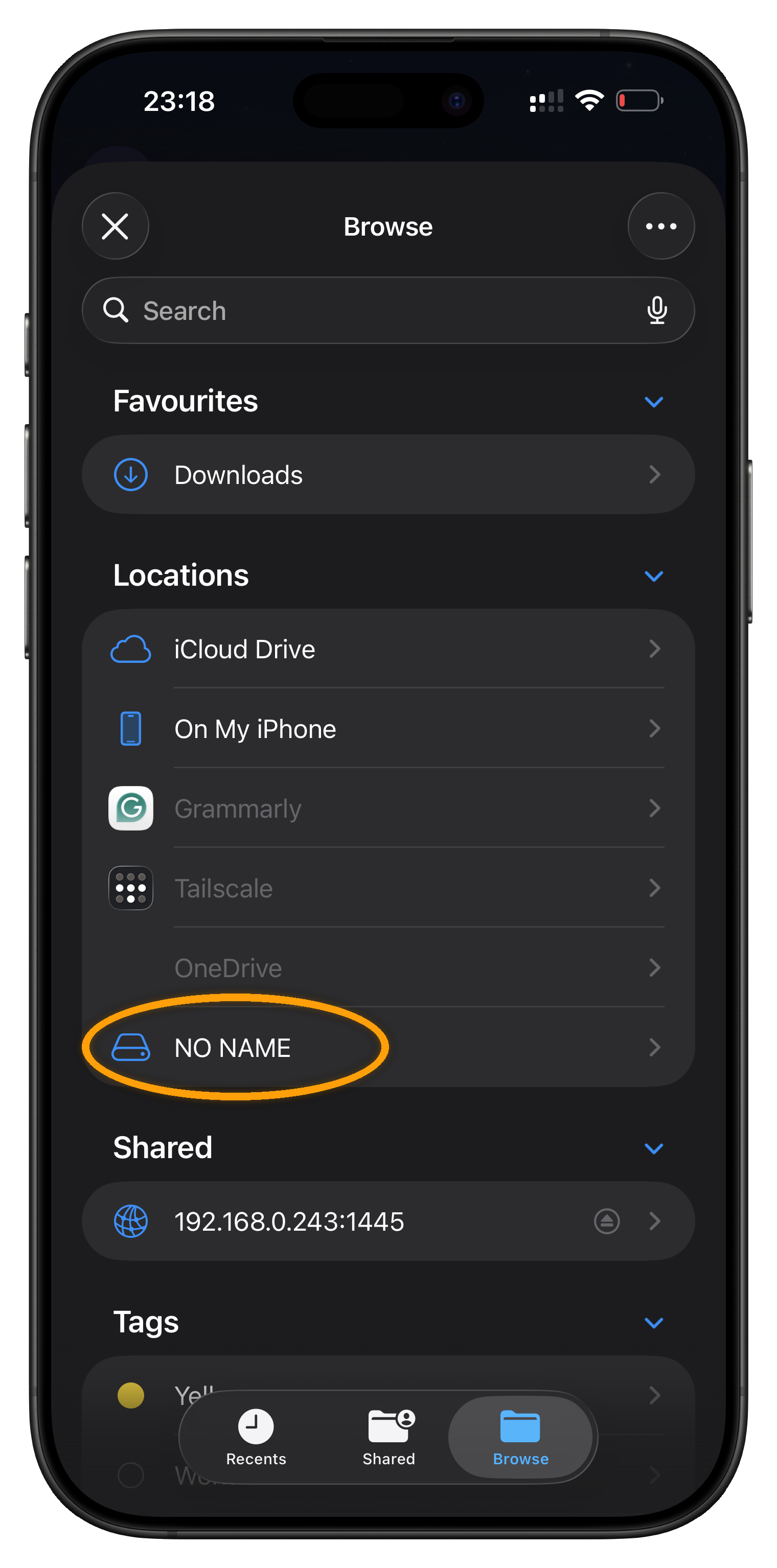

iOS Browse screen with NO NAME, the SD card, circled under Locations Inside the SD card showing DATALOG and SETTINGS, with the Open button circled

Your data stays safe. CPAP Analysis is strictly read-only – it never changes or deletes anything on your SD card, so your data remains intact for your doctor.

Still stuck?

Email us a screenshot of the file browser and we'll point you straight to the fix.

Email [email protected]

Or browse the full support page.
